Henan Sunsungs Import & Export Co., Ltd as a professional environmental protection equipment supplier located in Xinxiang city, Henan province where nears Zhengzhou airport and some famous place of interest in China. We thereby enjoy convenient transportation access and beautiful environment.
We could supply you almost all kinds of industry dust collector, passed ISO9001:2000 quality control system, ISO 14001:2004 environmental management system and Occupation health safety management system and so on. Main products: electrostatic precipitator, HMC type single pulse bag dust collector, PPC type air box pulse bag dust collector, LCDM long bag low pressure pulse bag dust collector, Blast furnace gas dry pulse bag dust collector, SX-G-I/II series desulfurization tower, SX-G-D series wet efficient desulfurization dust removal device, SCR denitration technology, SNCR denitration technology, all kinds of boiler dust collector, blast furnace blower and draught fan, etc.

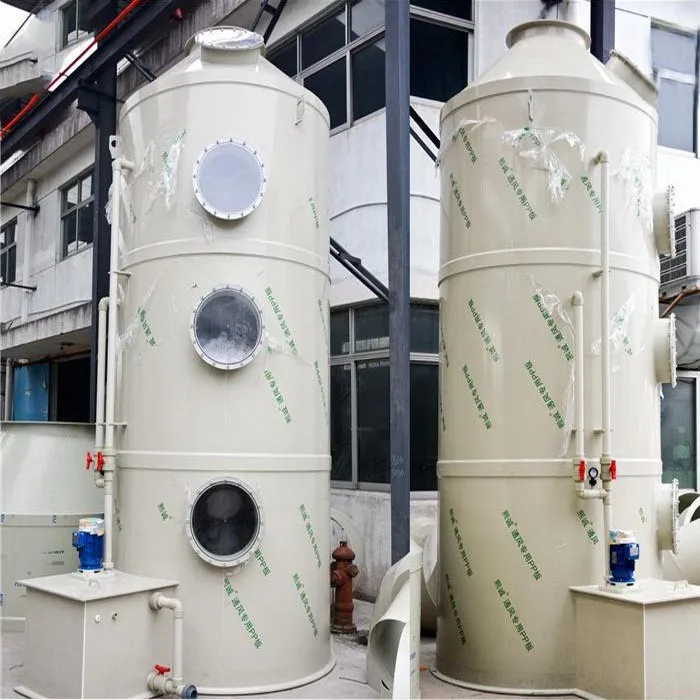

PP spray tower is a new type of industrial waste gas treatment and processing equipment. It is produced on the basis of an industrial exhaust gas purifier with a floating filler layer. It is widely used in the pretreatment of industrial waste gas treatment, dust removal, etc., and the purification effect is very good.
Exhaust gas is introduced into the spray tower by the fan, the inner cylinder forms a pressure chamber, and the pressure chamber is evenly distributed to each bubbling tube. The exhaust gas passes through the bubbling tube and enters the liquid absorption tank to absorb bubbling liquid, and then bubbles pass through the packing layer. The gas-liquid two phases are fully in contact with the absorption neutralization reaction. The water is sprayed on the top of the tower after being pressurized by the water pump at the bottom of the tower, and finally it is returned to the bottom of the tower for recycling, and the exhaust gas after absorbing and filtering continues to flow upwards and is sprayed. The absorption neutralization liquid ejected by the tube produces a final reaction. After neutralization reaction, the gas after dehydration and dust removal by the terminal defogging plate is discharged into the atmosphere, which can also be combined with photo-oxygen catalysis or low-temperature plasma and activated carbon gas purification equipment. After-exhaust gas reaches local or national emission standards and emission requirements
1. The material of the spray tower body is stainless steel, steel plate, polypropylene and fiberglass, and the whole is wound cylindrical cylinder body without segmented connection flange. The specific structure consists of pressure chamber, liquid storage tank, packing, spray Shower device, defoaming device and other components.
2. The packing layer in the spray tower is used as the mass transfer equipment for the contact parts of the gas-liquid two phases. The filling layer is equipped with a packing support plate at the bottom and the packing is placed on the supporting plate in a random stacking manner.
3. The chemical absorbent is sprayed downward from the top of the tower and the exhaust gas flows upward. The exhaust gas is in full contact with the absorbing liquid and is removed by reaction.
Total tower height(m)
Scope of application
Suitable for: furniture factory, paint factory, mine smelter, cement factory, chemical plant, dye factory, electroplating factory, sludge treatment, food, petroleum, chemical, pharmaceutical, plastic industry, etc., such as defogging, dust removal, powder, Deodorant and so on.
Packing & Delivery
1.Communicate to confirm customers’ requirement. 2. Do efficient and reliable solution and quotation. 3. Welcome customers to visit our factory at any time.
1.Complete production and timely delivery. 2. Assist customers to achieve an optimum installation scheme.
1.Experienced technicians guidance is available by phone or internet. 2. One or more engineers will be dispatched to customer site to guide installation, commissioningand so on. 3. Provide necessary training about machine daily maintenance to local workers. 4. Continually seek for opinion of users to improve our service.
