Low pressure industrial dust collector/dust extractor/dust suppression system for Cement Plant

FOB Reference Price:Get Latest Price
$10,000.00 - $100,000.00 / Set | 1 Set/Sets (Min. Order)
Type:
Air box pulse bag filter
Efficiency:
99.9%
Model Number:
PPC
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Sunsungs
Weight:
According to the size
Certification:
ISO9001:2008 SGS, IOS,CE
Minimum Particle Size:
0.5 micron
Warranty:
1 year
Dimension(L*W*H):
Can be customized
After-sales Service Provided:
Online support, Engineers available to service
Applicable Industries:
Building Material Shops, Manufacturing Plant, Printing Shops
Treatment capacity:
6912m3/h
Filtering velocity:
1.0m/min-1.2m/min
Effective filtration area:
96mm2
Number of filter bag:
96pieces
Air Consumption:
0.27m3/min
Insulation area:
26.5m2
Efficiency:
High
Design:
by our professional engineer
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Assembled wooden packaging or according to customers' requirement
Port
Qingdao or Tianjin port

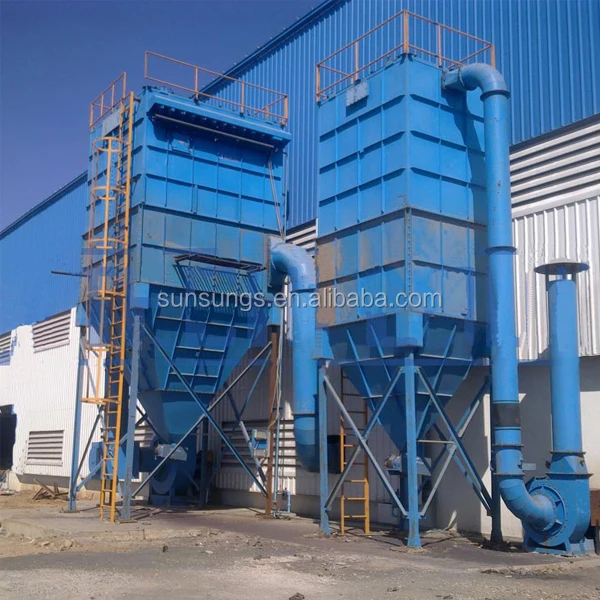

Low pressure industrial dust collector/dust extractor/dust suppression system for  Cement Plant






Main technical parameters of  Pulse-Plenum dust collector



PPC Type air box pulse bag filter with a total of four series of 33 kinds of specifications, the filter area from 93 m2 to 4361 m2, with air volume from 69003-314000 m3 / h/h, widely used in building materials, cement, metallurgy, machinery, chemical and refractory industry.Specially used for cement grinding, crushing, drying, coal powder, packing, library, such as the clinker cooler dust collecting system (or dust removal system);Is also applicable to coal mill dust collecting, but would add any measures for fire explosion dust collector structure will change accordingly, can also be applicable to the high gas dust collecting dust concentration, such as small coal grinding system with O - Sepa classifier, dust concentration of the gas is as high as more than 1000 g/m3 (standard), don't set for advance dust cyclone, the northern cold region in China, this filter after adding thermal insulation device can also apply.

Want to know more, contact me!






Dedusting technics



1. It have high efficiency in dust removal, especially for micro dust with a higher dust removal efficiency.

2. The way of using chamber took turns to cleaning soot is the so-called offline ash removal, when a room is into the blowing dust, filter air flow is cut off to avoid blowing dust producing the secondary dust float in the sky, , it improves the effect and extended the service life of the filter bag.

3. It can capture different nature of the dust with the strong adaptability. For example, for high resistance dust, the bag filter is superior to all electrostatic precipitator. In addition, when the entrance dust concentration changes in the considerable scope,it has little effect on the dust removal efficiency and the resistance.

4. It can be used flexible, and dealing with air volume can be made of hundreds of cubic meters to hundreds of thousands of cubic meters per hour ,it can be directly installed on the interior, machine nearby small unit, also can be large filter chamber.

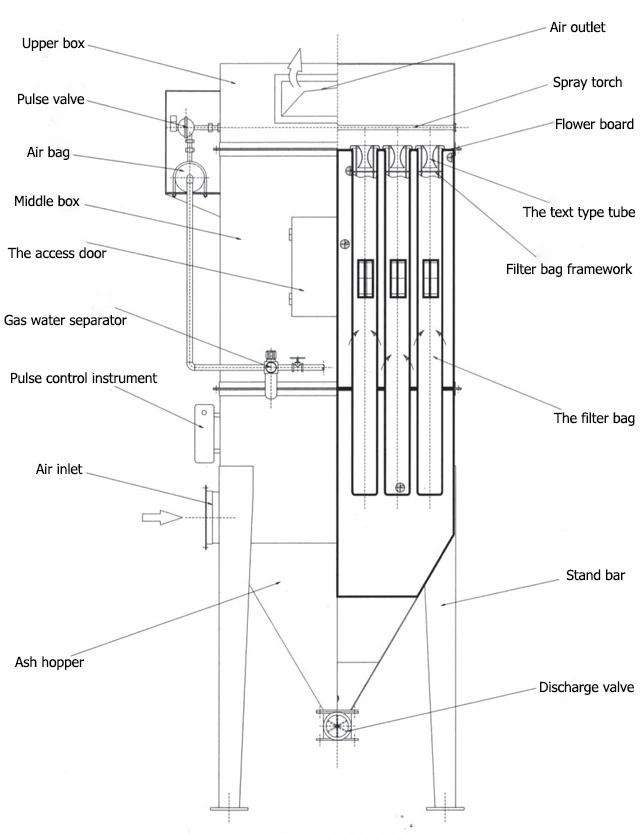

5. Equipment adopts gas box type structure to reduce the part resistance loss of equipment, and avoid the problem of being not convenient to install the filter bag.

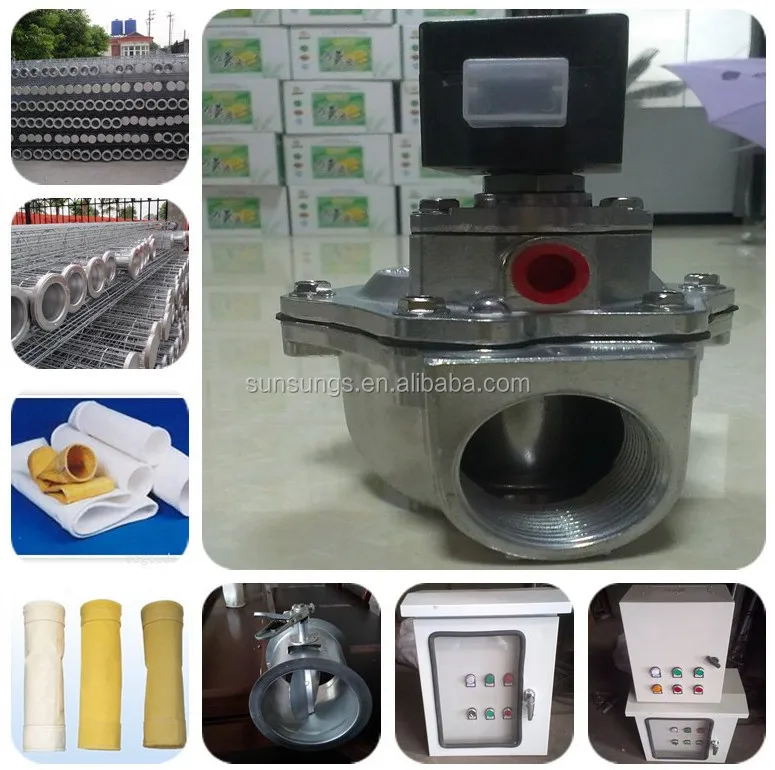

6. The electromagnetic pulse valve adopts double diaphragm structure, has the advantages of  sensitivity control, high efficiency, long service life, etc.

7. Simple structure, stable operation, convenient maintenance operation.
