Soldering ventilation and dust filter system solder smoke removal unit

FOB Reference Price:Get Latest Price
$350.00 - $1,900.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SX-YDS
Rated Air Flow (M3/Hr):
Contact me for the best offer!
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Sunsungs
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Video technical support
Purify Efficiency:
99%
Applicable Industries:
Building Material Shops, Manufacturing Plant, Printing Shops, Construction works
After Warranty Service:
Video technical support
Local Service Location:
United States, Kyrgyzstan
Showroom Location:
United Kingdom, Ukraine
Main function:
Removing soldering smoke and dust
Feature:
Easy to move and install
Application field:
Welding workshop, polishing workshop, etc.
Color:
Customized
Material:
Steel, plastic, etc
Airflow:
1200-7200m3/h
Power:
0.75-5.5kw
Filter area:
12-40m2
Noise:
Less than 60-72dB(A)
Lifetime:
More than 10 years
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood box package or according to customers' requirements.
Port
Qingdao, Shanghai or Tianjin port, China

Soldering ventilation and dust filter system solder smoke removal unit


fume extractor 17.jpg

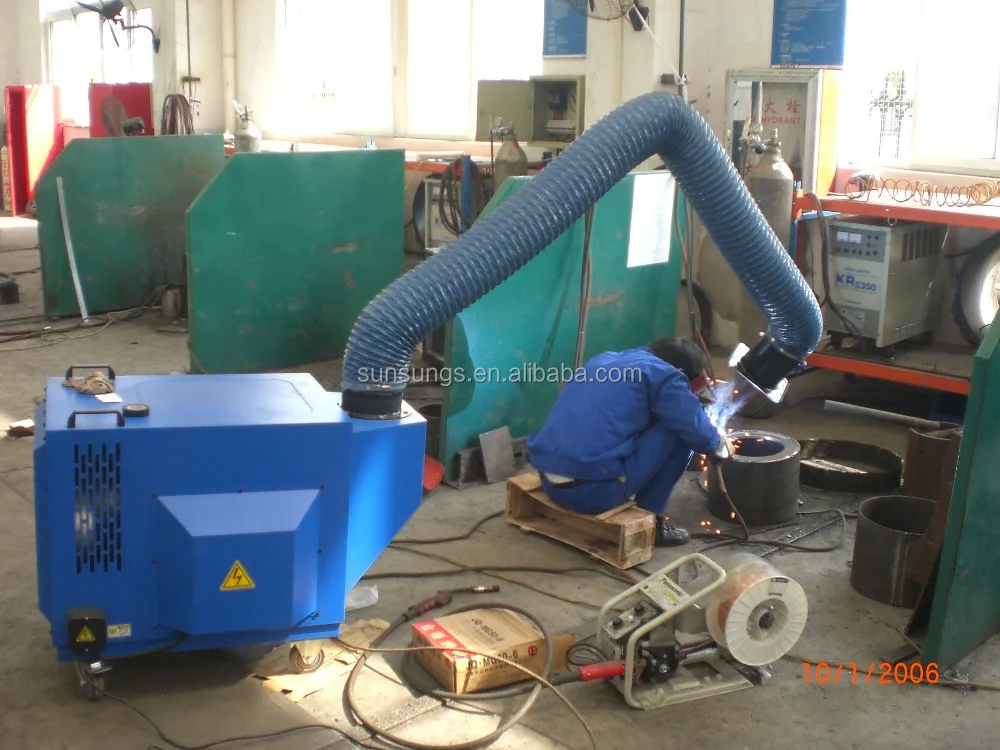

SX-YDS type portable solder smoke removal unit/welding fume extractor is used for smoke and dust purification in the processes of welding, polishing, cutting, grinding and the recycling of rare metals, precious materials, etc., it can purify large amounts of small harmful metallic particlessuspended in the air. With the advantages of high purification efficiency, low noise, flexible use, small covering area, etc.



Suitable for arc welding, carbon dioxide-shielded welding, gouging MAG welding, carbon arc welding, gas welding and cutting, and other special welding workplaces produced fume.

Want to know more, contact me!





Technical Parameters:

Model

Air volume

(M3/h)

Power

(Kw)

Voltage

(V/Hz)

Filter area

(M2)

Filter efficiency

(%)

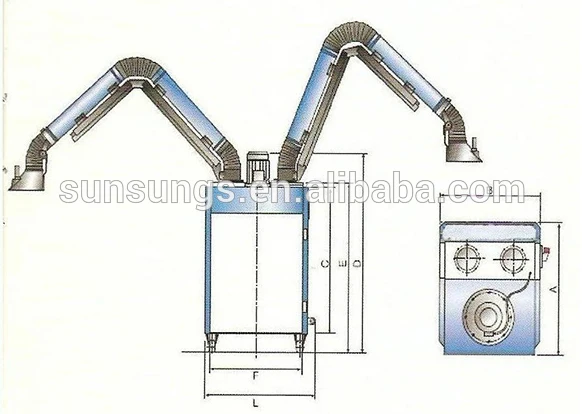

Dimension

(mm)

Noise

dB(A)

SX--YDS1200

1200

0.75





380/50

220/50











380/50

380/50





12

 More than 99.97%

580×550×1250

60

SX--YDS1500

1500

1.5

12

580×550×1250

62

SX--YDS2400

2400

2.2

15

580×550×1300

68

SX--YDS3600

3600

3.0

20

600×550×1750

72

SX--YDS2400S

2400

2.2

20

600×750×1600

69

SX--YDS3600S

3600

3.0

30

600×750×1700

72

SX--YDS4800S

4800

4.0

36

800×900×1410

70

SX--YDS7200S

7200

5.5

40

800×900×1410

72

Note :  1.   Can be designed according to users' special requirements.

             2.   Can select one-arm, two-arm or stationary welding smoke purifier according to the operating conditions.

             3.   Can choose filter cylinder surface soot cleaning way according to users' requirements for manual ash removal mode or automatic ash removal mode.

             4.   Can add layers adsorbed on activated carbon or other odor removal devices according to the welding method and exhaust components.

Want to know more details to contact me!






Through fan gravity, welding smoke exhaust inlet, the universal dust hood suction equipment equipment into air inlet with flame resistance, spark by the flame were blocked, smoke gas into the sedimentation chamber, use of gravity and the upward airflow, will first coarse dust fall directly to ash hopper dustparticles by filter capture outer surface, clean gas afterfilter filtration purification by filter center into theclean room, clean air filter and the activated carbon adsorption further after purification by the outlet standard discharge.

welding fume extractor principle.jpg

welding fume extractor principle 1.jpg

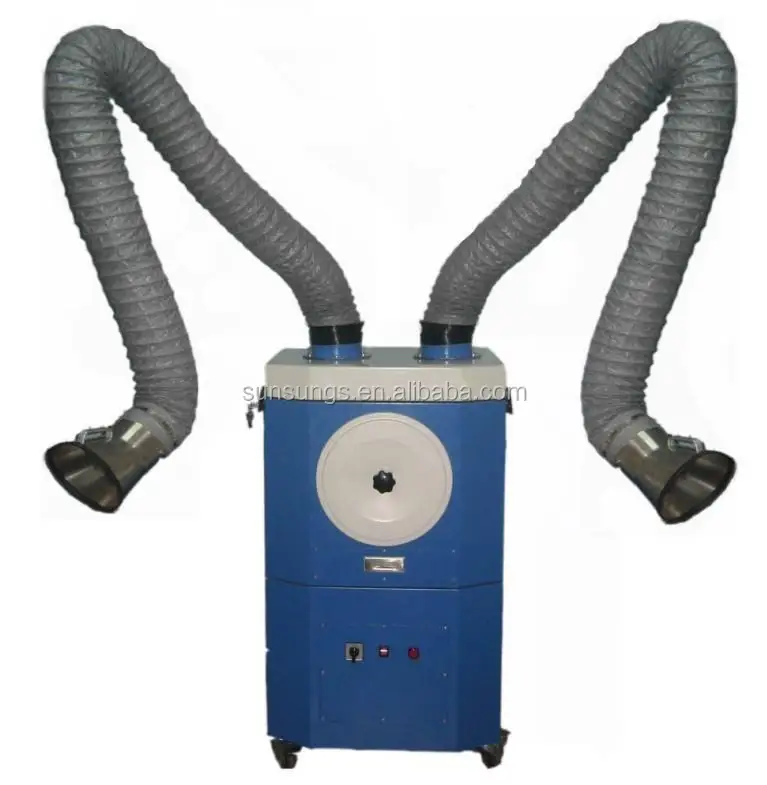

product-components.jpgThe main parts include:

Universal aspiration arm, high temperature resistant vacuum hose, suction hood warfare (with air volume control valve), resistance, flame retardant high efficiency filter, clean room, activated carbon filters, heavy ash drawer combination with the brakes, flame retardant, sound-absorbing cotton, heavy rubber universal casters, fan, import motor, electric control, etc.

welding fume extractor components.jpg



The advantages of solder smoke removal unit:

1. Equipped with a turbo-blower and motor, the over load protection circuit prevents motor burn out, high security, performance and stability.

2. Using built-in Central Central PLC control method, simple structure, easy to operate.

3. Automatic backflush filter using Omni-directional pulse ash removal, surface cleaning of filter cleaner and clean, to always ensure the filter has a constant suction air volume.

4. The cartridge with American imported materials, long service life, dust particles can absorb 0.3μm, dust on the wet and sticky has a good filtering effect.

5. The universal use of 360 degrees at the suction arm, the flue gas can be sucked from flue gas, greatly improve the dust collection rate, to ensure the health of workers.

6. Purifier against fire hazards and large particles of slag using the three protective measures, longer filter life, safe and reliable.

7. Clean air from the air outlet grille and dispersed uniformly in the direction of guiding, thus to reduce the noise to a minimum.

8. With dedicated heavy duty rubber casters with brakes, the convenience of free movement and positioning.

9. Photoelectric control on/off, high efficiency and energy saving, cantilever hood with lighting devices (optional).

10. The stable performance of the purifier supplies, convenient replacement.
