The structure of it is characterized with helical tangent type gas downward sloping import, guide plate roof is a spiral. The larger guide plate angle is , the pressure loss is smaller, but the efficiency of dust removing decreases. Because of the gas from the tangential direction entering, and a guide plate, which can eliminate the small vortex flow into the gas to flow and form, reducing energy consumption, improving the efficiency of dust. Its another characteristic is slender cylinder cone and long cone, the cone‘s angle is small, can improve the dust collecting efficiency, but also higher pressure loss.
2) working principle
The majority of rotating flow is along the wall spiral moving from downward to the bottom of the cone , forming the outer rotating falling dust airflow,the centrifugal force generated in the process, strong rotation in the density is far greater than the gas dust thrown to the wall, the dust once in contact with the wall, will lose the inertia force and momentum near the entrance velocity and its own gravity along the wall falling into the collection bucket. Rotary airflow decline at the cone base, axial position along the precipitator to up. The formation of internal rotation flow increased, and the exhausting from collector tube.
3, Good separation effect for coarse dust particles
4, Preliminary treatment for multi-stage dust removing
Operating Principle of cyclone dust collector :
Cyclone dust collector is a dry gas-solid separator device that separates dust powder from air stream by using centrifugal force generated by revolving dust air.
Cyclone dust collector is easy in structure and manufacturing and low in cost and running cost. It has high filtering efficiency for coarse dust particles that have a diameter more than 5 μm,but it has low filtering efficiency for fine dust particles that have a diameter less than 5 μm(especially fine dust particles with low density). So cyclone dust collector is often used for preliminary treatment on coarse dust powder purification or multi-stage purification.
XP type cyclone dust collector is applicable to common dust removing and material recovery from industrial waste gas in general industries,not applicable to sticky dust.
Application Scope of cyclone dust collector :
It’s applicable to mines, metallurgy, fireproof materials, building materials, coal, chemical industry and power industry.
Packaging & Shipping
1. Dust collector will be packed after test.

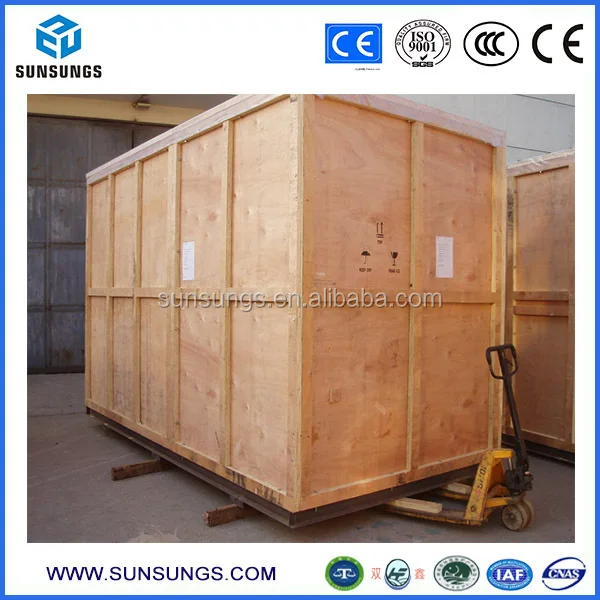

2. Electric control cabinet: All is packed by wooded box, save sealing, rain-proof, shock-proof.
